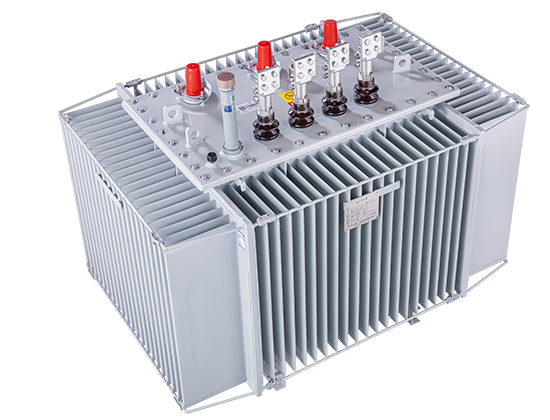

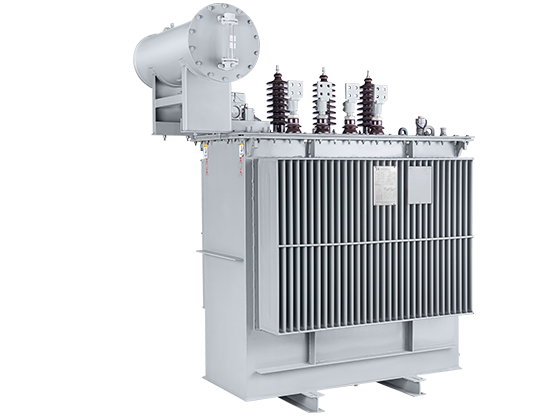

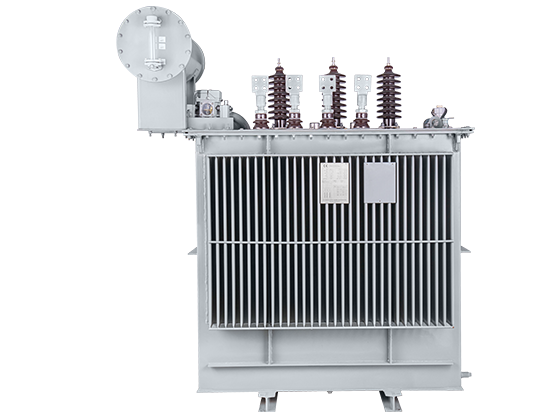

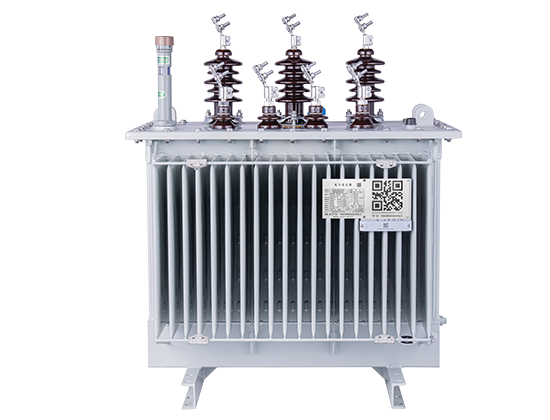

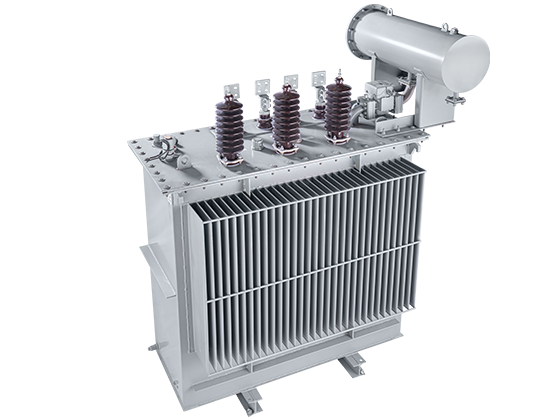

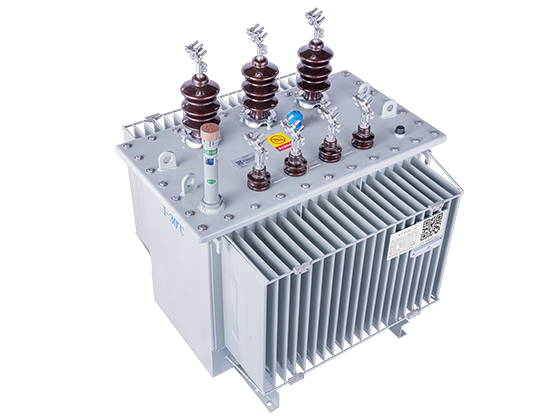

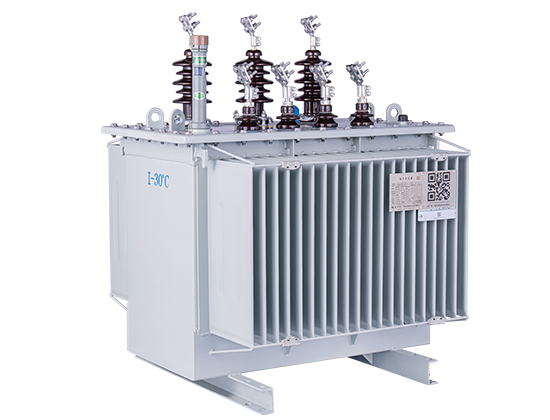

OIL-IMMERSED DISTRIBUTION TRANSFORMER
1.Suitable for indoor or outdoor applications. 2.Reliable, safe and stable operation. 3.Widely used in power network, commercial and residential buildings, industrial and mining enterprises.
Product Features
Compact structure and small size.
High-quality insulation oil (vagetable oil、mineral oil), and the vegetable oil is environmentally friendly and has a high ignition point.
Hermetically sealed structure design, maintenance free and no leakage during the whole life cycle.
Meet the latest energy efficiency standards and save energy with high efficiency.
Technical Parameter
| Technical specifications | |||||
| Voltage level (kV) | ≤36 | ||||
| Rated power (kVA) | ≤3150 | ||||
| Frequency (Hz) | 50/60 | ||||
| Insulation grade | A | ||||
| Maximum ambient temperature (℃) | 55 | ||||
| Altitude (m) | ≤5000 | ||||
| Type of cooling | ONAN/ONAF,KNAN/KNAF | ||||
| Winding material | Copper/Aluminum | ||||
| Voltage regulation mode | Off circuit | ||||
| Installation | Pole mounted(≤630kVA)/Pad mounted | ||||
| Structure type | Fully sealed/Conservator | ||||
| Insulating medium | Natural/Synthetic ester/ Mineral oil | ||||
| Standards | EN/IEC60076/ANSI/IEEE-C57.12,etc. | ||||
Declaration: This product is a custom class, special requirements can be customised according to customer requirements. | |||||
