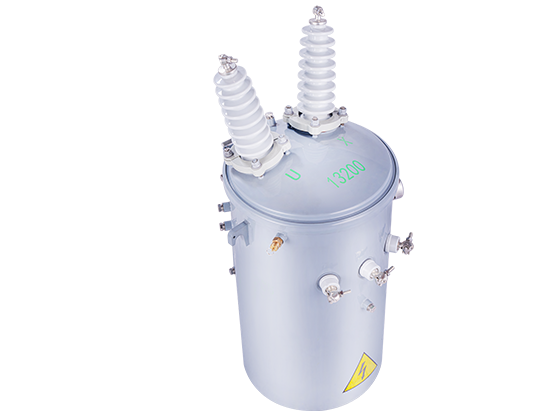

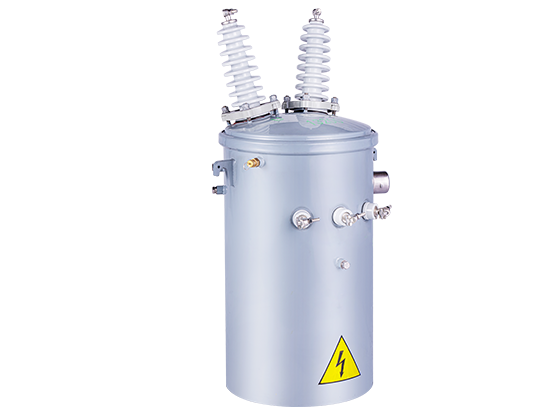

OIL-IMMERSED 1P POLE MOUNTED DISTRIBUTION TRANSFORMER
1.It can be installed on poles or stand alone or be combined into three phases. 2.Suitable for residential overhead distribution systems, light commercial loads, industrial lighting and various power applications.
Product Features
Easy to install, beautiful appearance.
No leakage during the whole life cycle.
Low noise, small size, light weight.
Wound core or amorphous alloy structure, low no-load loss, remarkable economic benefits.
Technical Parameter
| Technical Specifications | |||
| Voltage level(kV) | ≤36 | ||
| Rated power(kVA) | ≤300 | ||
| Frequency(Hz) | 50/60 | ||
| Insulation grade | A | ||
| Maximum ambient temperature (℃) | 55 | ||
| Altitude (m) | ≤3500 | ||
| Type of cooling | ONAN/ONAF,KNAN/KNAF | ||
| Winding material | Copper/Aluminum | ||
| Voltage regulation mode | Off circuit | ||
| Installation | Pole mounted | ||
| Structure type | Fully sealed | ||
| Insulating medium | Natural/Synthetic ester/ Mineral oil | ||
| Standards | IEEE、ETC、ANSI、NEMA | ||
| Declaration: This product is a custom class, special requirements can be customised according to customer requirements. | |||
