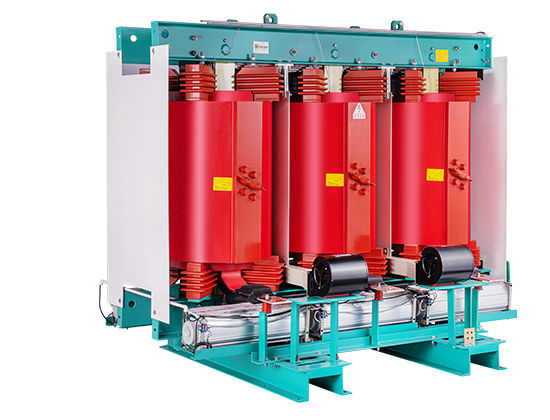

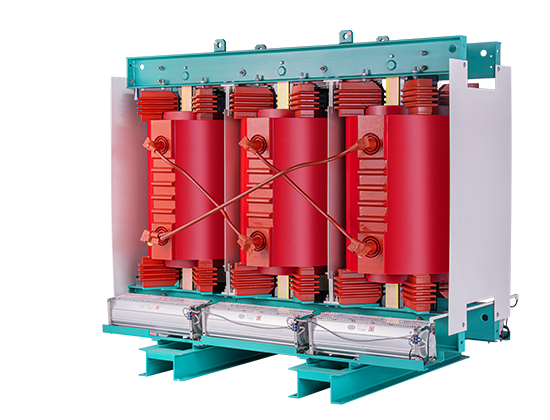

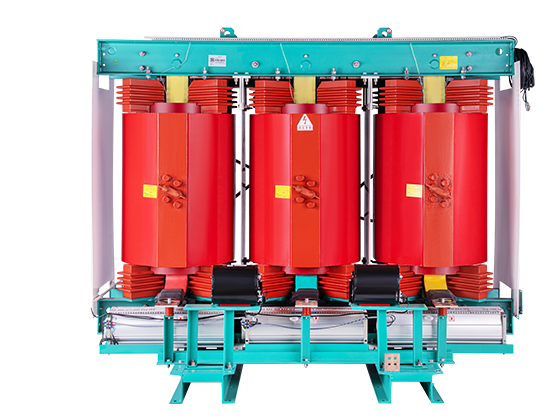

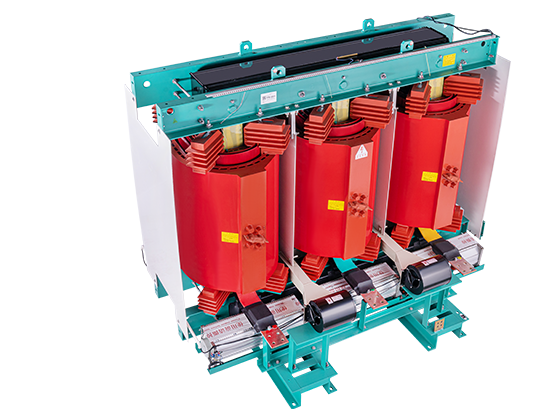

RESIN CAST DRY TYPE DISTRIBUTION TRANSFORMER
1.New magnetic core material. 2.High efficiency and energy saving, no-load loss reduced by 70% as compared with ordinary silicon steel sheet, no-load current reduced by 50%. 3.Widely used in airports, stations, urban power grids, high-rise buildings and power plants.
Product Features
Beautiful appearance, compact structure, environment friendly.
Maintenance-free, widely used in commercial buildings and load center areas.
Small partial discharge, outstanding thermal stability, low noise, high overload capacity.
Amorphous alloy as a magnetic conductive material, no-load loss 70%~80% lower than ordinary silicon steel sheet.
Vacuum pressure mirror casting process, beautiful appearance, strong anti-sudden short circuit ability.
Technical Parameter
| Technical Specifications | |||||
| Voltage level (kV) | ≤10.5 | ||||
| Rated power (kVA) | ≤2500 | ||||
| Frequency (Hz) | 50/60 | ||||
| Insulation grade | B、E、H、F、C | ||||
| Maximum ambient temperature (℃) | 55 | ||||
| Altitude (m) | ≤3000 | ||||
| Type of cooling | AN/AF | ||||
| Winding material | Copper/Aluminum | ||||
| Voltage regulation mode | On-Load/Off circuit | ||||
| Standards | EN60076/IEC60076/ANSIC57.12/IEEE-C57.12,etc. | ||||
| Declaration: This product is a custom class, special requirements can be customised according to customer requirements. | |||||
